TOTO Universal Frame Bundle (WH182ET) | Auto-Flush Ready for WASHLET & NEOREST

Be the first to review this product

Features

  • Accessory

Parts

  • Water Cistern

Short Description

The ultimate foundation for your modern TOTO bathroom. This configurable bundle provides the complete installation framework required for TOTO's premium ceramic ranges.

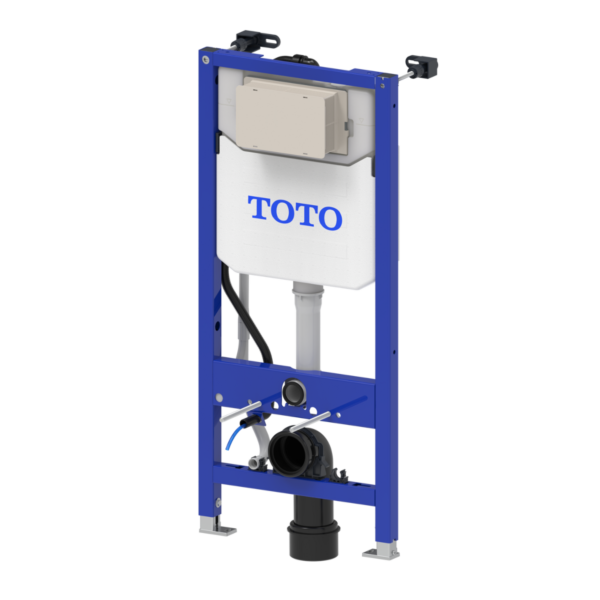

  • Universal Base: The robust WH182ET concealed cistern (1120mm) suitable for all TOTO wall-hung ceramics.
  • Auto-Flush Ready: Pre-prepared mounting points for the HM184 Motor Unit (sold separately/in bundle).
  • Configurable Bundle: Select the specific connection set and flush plate to match your chosen model (Standard WASHLET vs. NEOREST WX).
  • Future-Proof: Integrated conduits allow for invisible cable and water routing.

*Please select your Configuration options below.

Add to Wish List Add to Compare
Email
Availability: In stock
SKU
WH182ET-bundle
was EUR 738.45 Special Price EUR 531.54

The ultimate foundation for your modern TOTO bathroom. This configurable bundle provides the complete installation framework required for TOTO's premium ceramic ranges.

  • Universal Base: The robust WH182ET concealed cistern (1120mm) suitable for all TOTO wall-hung ceramics.
  • Auto-Flush Ready: Pre-prepared mounting points for the HM184 Motor Unit (sold separately/in bundle).
  • Configurable Bundle: Select the specific connection set and flush plate to match your chosen model (Standard WASHLET vs. NEOREST WX).
  • Future-Proof: Integrated conduits allow for invisible cable and water routing.

*Please select your Configuration options below.

TOTO Universal WC Element Installation Bundle
TOTO 2025 Generation

The Foundation of your TOTO Sanctuary: WH182ET Bundle

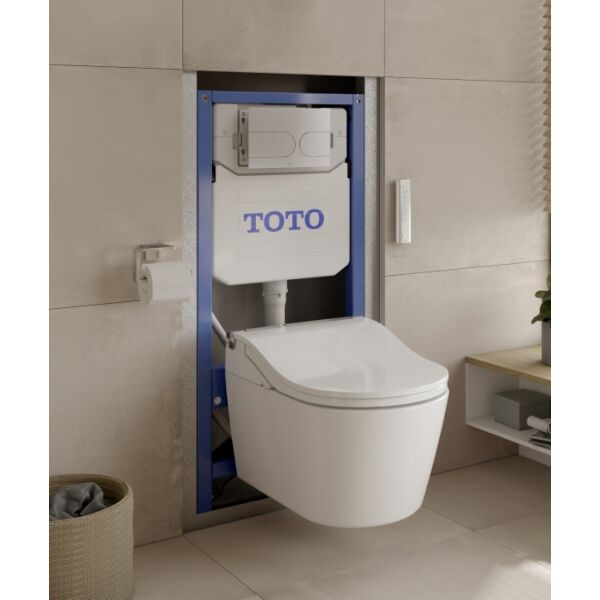

This is not just a frame; it is the central nervous system of your TOTO installation. Engineered to perfectly house the Japanese technology of TOTO Washlets, this universal element integrates water supply, power, and auto-flush mechanics invisibly behind your wall tiles.

Customize Your Installation Bundle

This frame is compatible with all TOTO ceramics, but the internal mechanics differ depending on your chosen bidet model. Please select the correct combination below:

A For Standard WASHLETs

Choose this configuration for WASHLET RW, SW, RX, or SX models.

  • Connection Set: SP10695UN (Standard Linkage)

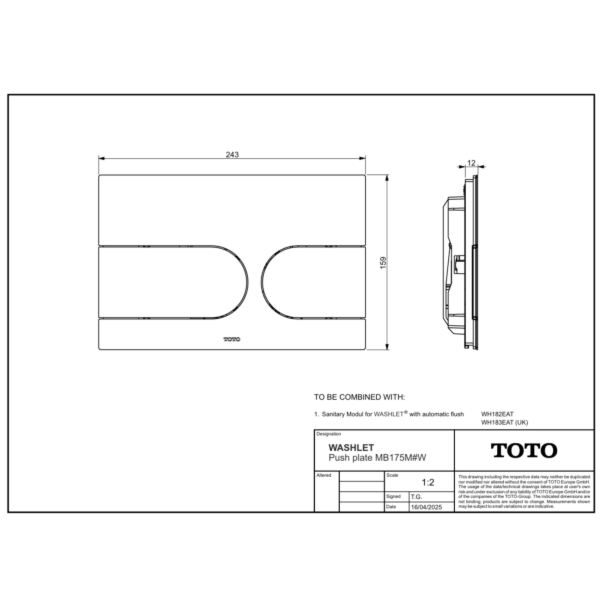

  • Compatible Plates: MB175M Series
Stainless Steel
Matte White
Matte Black
B For NEOREST WX

Choose this configuration specifically for the flagship NEOREST WX1 & WX2.

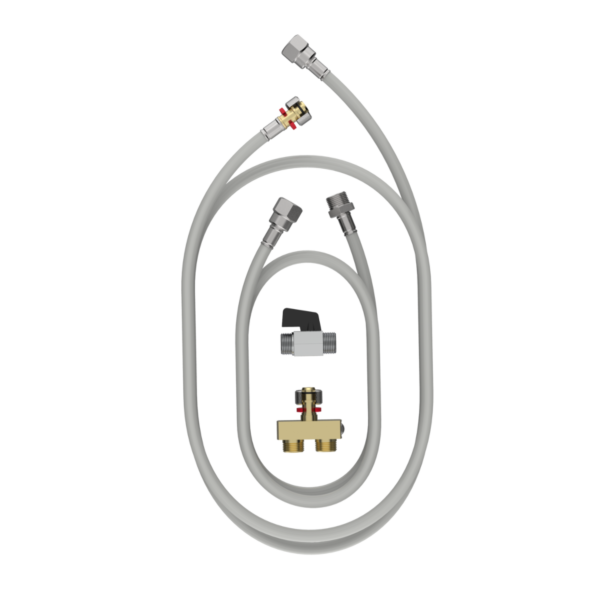

  • Connection Set: HM183 (Heavy Duty Linkage)

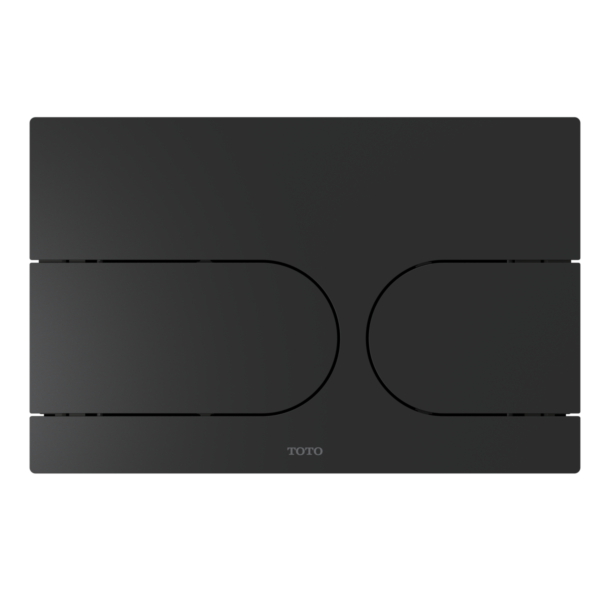

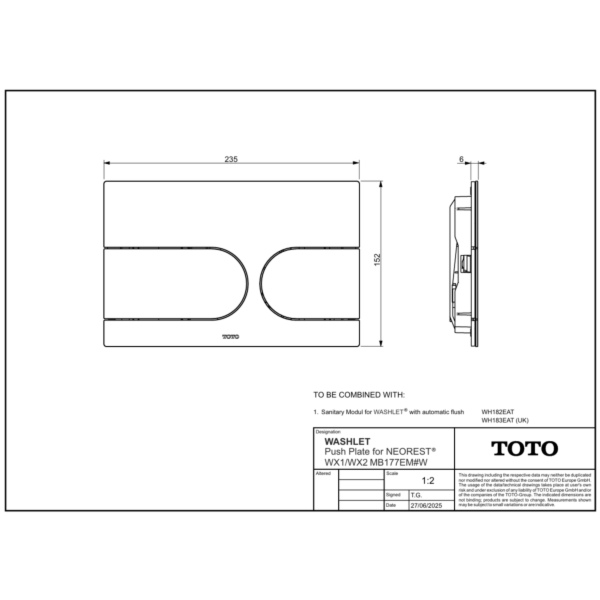

  • Compatible Plates: MB177EM Series
Silver (Alu)
Matte White
Matte Black

Advanced Touch-Free Hygiene

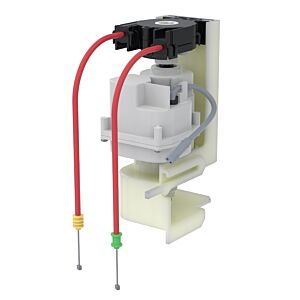

Prepared for the HM184 Auto Flush Motor, this frame transforms your bathroom into a touchless environment. The intelligent system registers user presence and flushes automatically.

  • Eco Flush (3L): Activated after 6–30 seconds.
  • Full Flush (4.5L): Activated after 30+ seconds.
  • Safety Logic: No flush for usage under 6 seconds.

Future-Proof Engineering

The WH182ET features an integrated conduit tunnel. This means water and power cables are routed invisible through the frame into the ceramic.

Planning a phased project?
Install the frame and a standard TOTO toilet today. Thanks to the conduit system, you can upgrade to a WASHLET later without breaking a single tile.

System Component Guide

Ensure your bundle includes the correct components for your model:

Component Standard WASHLET (RW/SW/RX/SX) NEOREST WX (WX1/WX2)
Frame WH182ET / WH183ET
Motor Unit HM184 Motor
Connecting Set SP10695UN HM183
Push Plate Design MB175M (3 Colours) MB177EM (3 Colours)

Frequently Asked Questions

Why are there different flush plates for the Neorest WX?

The NEOREST WX uses a slightly different mechanical lifting mechanism compared to standard Washlets. Therefore, it requires the specific MB177EM push plate and the HM183 connecting set to function correctly with the auto-flush motor.

Do I need the HM184 Motor Unit?

The motor is required only if you want automatic flushing (where the toilet flushes itself when you stand up). If you prefer to push the button manually, you do not need the motor, but you still need the correct frame and push plate.

Is the installation depth adjustable?

Yes. The frame has a base depth of 120mm but fits standard EU/UK stud walls or pre-wall installations with an adjustable range of 150mm to 225mm via the mounting brackets.

Technical Specs: 500 x 120 x 1120 mm | Frame Colour: TOTO Blue | Material: Powder-coated Steel | Flush Volume: 3L / 4.5L Preset

More Information
Delivery time: 2-3 Days
Brands TOTO
Specifications:

Technical Data Sheet

TOTO Universal WC Element (WH182ET)

Official Successor to WH182EAT
General Product Information
Product Code WH182ET / WH183ET New Generation
GTIN / EAN 40 50663 09690 8
Primary Application Universal Frame System for all TOTO wall-hung Toilets, WASHLETs, and NEOREST models.
Dimensions 500mm (W) x 1120mm (H) x 120mm (D)
Material & Finish High-durability powder-coated steel; Colour: TOTO Blue.
Weight 15.7 kg

Hydraulic Specifications

  • Flush Type: Dual Flush (Pneumatic/Mechanical)
  • Pre-set Flush: 3 Litre / 4.5 Litre
  • Water Pressure: 0.1 MPa to 1.0 MPa
  • Water Supply: R 1/2" Thread

Installation Details

  • Mounting Centers: 180mm / 230mm
  • Pre-Wall Depth: 150mm - 225mm (Adjustable)
  • Height Adjustment: 0 - 200mm via floor supports
  • Conduit: Integrated empty conduit for concealed WASHLET connections

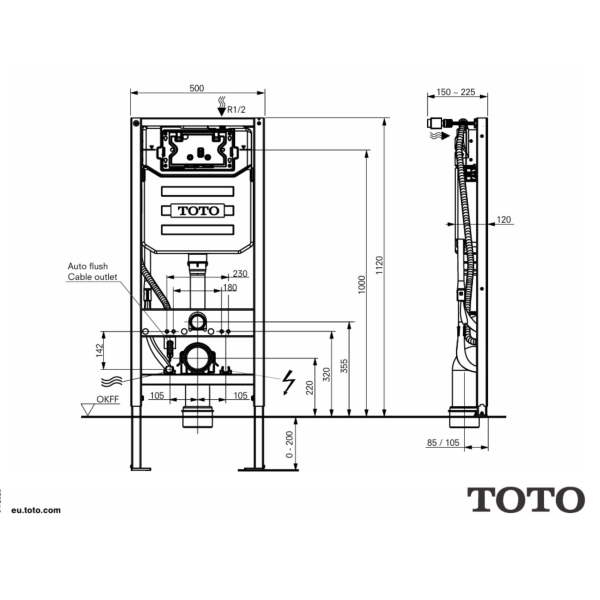

Technical Dimensional Drawing

TOTO WH182ET Dimensions and Technical Drawing

Dimensions in mm. Subject to technical changes.

System Compatibility Matrix

The WH182ET is a universal base. To achieve full functionality (including Auto Flush), use the following mandatory configurations:

Requirement TOTO WASHLET® (RW, SW, RX, SX) NEOREST® WX (WX1, WX2)
Base Frame WH182ET / WH183ET
Auto Flush Motor HM184 Motor Unit (Optional for Auto Flush)
Connecting Set SP10695UN HM183
Compatible Flush Plate MB175M Series MB177EM Series
Ceramic Models RP (CW542ERY), SP (CW522ERY), GP (CW553EY) WX1 (CS911VT), WX2 (CS911VBT)

Provisioning Requirements

For successful WASHLET® integration, the following on-site provisions must be made prior to wall closure:

  • Power Supply: NYM-J 3 x 1.5 mm² cable, protruding approx. 500mm from the cable outlet.
  • Protection: Dedicated RCD (Residual Current Device) rated at 30mA.
  • Water: Cold water supply via the frame's internal R 1/2" connection point.

Compliance: EN 14055, DIN 4109 (Sound insulation), CE Certified.

TOTO Europe GmbH: All specifications refer to the European product generation 2025.
