Concealed Frame System for WASHLET® with Touchless Auto-Flush

The TOTO WH182EAT is a robust in-wall frame engineered to bring seamless, hygienic, touchless flushing to compatible TOTO WASHLET® and NEOREST® configurations. Designed for professional installations, it integrates neatly behind the wall to preserve a minimalist, modern bathroom aesthetic.

Key Features

• Auto-Flush, Touchless Convenience: Enables hands-free flushing when paired with the required push plate and compatible WASHLET® models.
• Integrated Components: Supplied including motor for automatic flush and a connection cable to the WASHLET® for a clean, well-integrated setup.
• Durable Steel Frame: Built for reliability and long service life in demanding residential or hospitality environments.
• Concealed Installation: Maximises visual simplicity while providing professional adjustability and service access.

Specifications

• Product Code: WH182EAT
• EAN (GTIN): 4050663095673

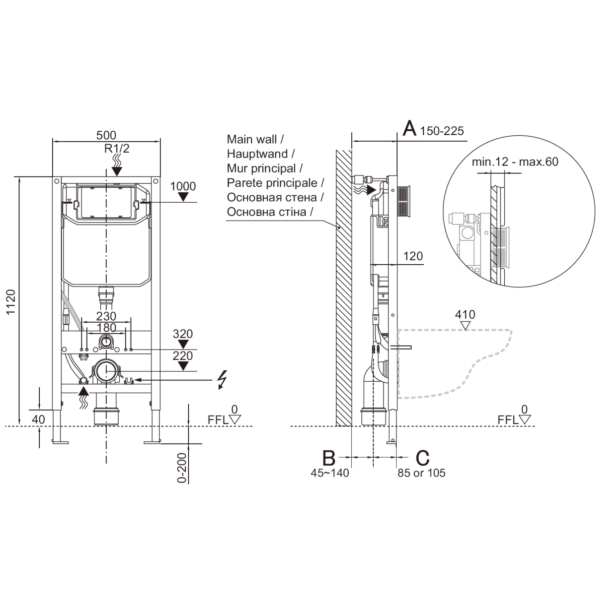

• Dimensions (W × D × H): 500 × 120 × 1120 mm
• Weight: 15.7 kg
• Material: Steel
• Technology: Auto Flush / Touchless

What’s Included

• Frame system with auto-flush motor
• Connection cable to WASHLET®

Required Accessories (Sold Separately)

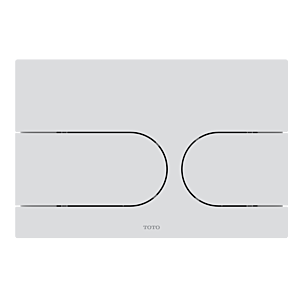

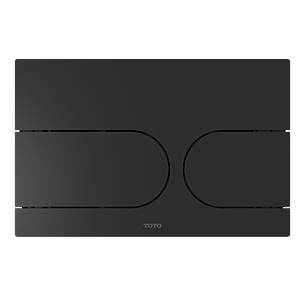

• Push Plate: TOTO MB175M series (e.g., MB175M#SS) or MB177EM#S for NEOREST® WX
• Connecting Set: SP10695UN (WASHLET®) or HM183 (NEOREST® WX)

Compatibility

Enables the automatic flush feature when paired with the above accessories and compatible auto-flush WASHLET®/NEOREST® models, including:

• WASHLET® RW auto flush: TCF802C2G, TCF804C2G
• WASHLET® RX/SX EWATER+ auto flush: TCF895CG, TCF897CG
• WASHLET® for NEOREST® WX: TCF95180GEU (WX1), TCF95280GEU (WX2)

Installation Notes

• Use the official installation template for precise wall cut-outs and service locations (water, power, drain, auto-flush cable).
• Professional installation recommended.
